Hyundai Creta: Interior features / Ashtray

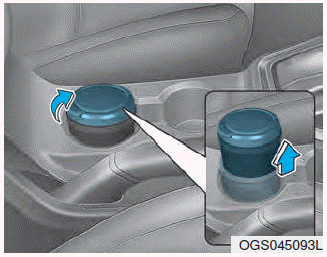

To use the ashtray, open the cover.
To clean or empty the ashtray, pull the ashtray out.
Do not use the vehicle’s ashtray as waste receptacles.
WARNING
Putting lit cigarettes or matches in an ashtray with other combustible materials may cause fire.
