Hyundai Creta: Lubrication System / Engine Oil: Repair procedures
| Oil And Filter Replacement |
| • |
Prolonged and repeated contact with mineral oil will result
in the removal of natural fats from the skin, leading to dryness,
irritation and dermatitis. In addition, used engine oil contains
potentially harmful contaminants which may cause skin cancer.
|
| • |
Exercise caution in order to minimize the length and frequency
of contact of your skin to used oil. Wear protective clothing
and gloves. Wash your skin thoroughly with soap and water, or
use water-less hand cleaner, to remove any used engine oil.
Do not use gasoline, thinners, or solvents.
|
| • |
In order to preserve the environment, used oil and used oil
filter must be disposed of only at designated disposal sites.
|
|
| 1. |
Drain the engine oil.
| (1) |
Remove the oil filler cap (A).
|
| (2) |
Remove the engine room under cover.
|
| (3) |
After lifting the vehicle, remove the oil drain plug (A) and
drain oil into a container.
|
|
| 2. |
Remove the oil filter
| (1) |
Remove the oil filter (A) with the oil filter wrench (09263-2E000)
.
|
| (2) |
Check and clean the oil filter installation surface.
|
| (3) |
Apply clean engine oil to the gasket of a new oil filter.
|
| (4) |
Install the new oil filter by hand till the gasket seats.
|
| (5) |
Tighten the oil filter to the specified torque using the oil
filter wrench.
|
Tightening torque :
11.8 ~ 15.7 N.m (1.2 ~ 1.6 kgf.m, 8.7 ~ 11.6 lb-ft)
|
|
|
| 3. |
Refill with engine oil.
| (1) |
Clean and install the oil drain plug with a new gasket.
|
Tightening torque :
34.3 ~ 44.1 N.m (3.5 ~ 4.5 kgf.m, 25.3 ~ 32.5 lb-ft)
|
|
| (2) |
Fill with fresh engine oil.
|
Capacity :
Total :3.7~ 4.0L (3.91 ~ 4.22US gt, 3.25 ~ 3.51 lmp
qt)
Oil pan : 3.3L (3.48US qt, 2.90lmp qt, 0.87 US gal)
Drain and refill in cluding oil filter :
3.6 L (3.80US qt, 3.16lmp qt, 0.95 US gal)
|
|
| (3) |
Install the oil filler cap.
|
|
| 4. |
Start engine and check for oil leaks.
|
| 5. |
Recheck the engine oil level.
|
Engine Oil
| 1. |
Check the engine oil quality.
Check the oil deterioration, entry of water, discoloring of thinning.
If the quality is visibly poor, replace the oil.
|
| 2. |
Check the engine oil level.
After warning up the engine and then 5 minutes after the engine stop,
oil level should be between the "L" and "F" marks in the dipstick.
If low, check for leakage and add oil up to the "F" mark.
| •
|
Do not fill with engine oil above the "F" mark.
|
|
|
Selection of Engine Oil
Specifications :
For Europe : 5W-20 / API SM & ILSAC GF-4 (or above)/ ACEA A5 (or above)
For except Europe : 5W-30 / ACEA A5
| • |
API SL, ILSAC GF-3, ACEA A3 Class engine oil can be used if
the recommended engine oil is not available.
|
|

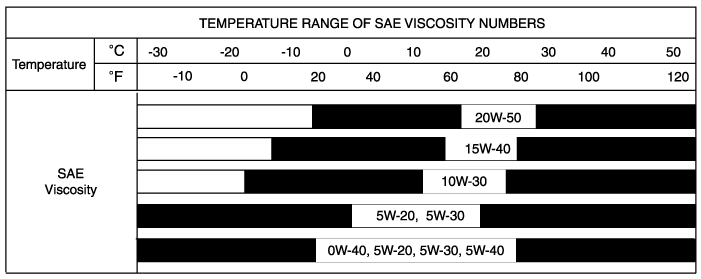

Allowed SAE Viscosity
| • |
For best performance and maximum protection of all types of
operation, select only those lubricants which:
|
| 1) |
Satisfy the requirement of the API, ILSAC or ACEA classification.
|
| 2) |
Have proper SAE grade number for expected ambient temperature
range.
|
| 3) |
Lubricants that do not have both an SAE grade number and API,
ILSAC or ACEA service classification on the container should
not be used.
|
|
Components and components location
Components
1.
Timing chain cover
2. Inner rotor
3.
Outer rotor
4. Pump cover
R ...
