Information

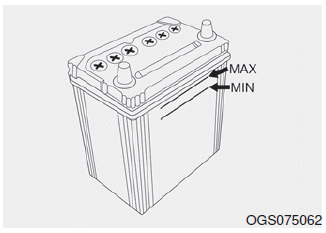

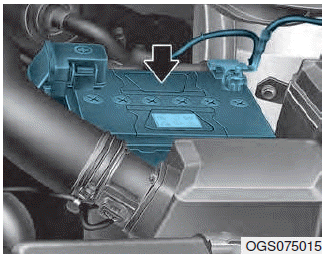

Basically equipped battery is maintenance free type. If your vehicle is equipped with the battery marked with MIN and MAX on the side, you can check the electrolyte level. The electrolyte level should be between MIN and MAX. If the electrolyte level is low, it needs to add distilled (demineralized) water (Never add sulfuric acid or other electrolyte).
When refill, be careful not to splash the battery and adjacent components. And do not overfill the battery cells. It can cause corrosion on other parts. After then ensure that tighten the cell caps. We recommend that you contact an authorized HYUNDAI dealer.
NOTICE
If the Electrolyte level is Low, Add distilled ( demineralized ) water. Never add sulfuric acid or other electrolyte.
WARNING
Battery dangers
Always read the following instructions carefully when handling a battery.
Keep lighted cigarettes and all other flames or sparks away from the battery.
Hydrogen, a highly combustible gas, is always present in battery cells and may explode if ignited.
Keep batteries out of the reach of children because batteries contain highly corrosive SULFURIC ACID. Do not allow battery acid to contact your skin, eyes, clothing or paint finish.
If any electrolyte gets into your eyes, flush your eyes with clean water for at least 15 minutes and get immediate medical attention. If electrolyte gets on your skin, thoroughly wash the contacted area. If you feel a pain or a burning sensation, get medical attention immediately.
Wear eye protection when charging or working near a battery. Always provide ventilation when working in an enclosed space.
An inappropriately disposed battery can be harmful to the environment and human health. Dispose the battery according to your local law(s) or regulation.
The battery contains lead. Do not dispose of it after use. Please return the battery to an authorized HYUNDAI dealer to be recycled.
Failure to follow the above warnings can result in serious bodily injury or death.
NOTICE
If you connect unauthorized electronic devices to the battery, the battery may be discharged. Never use unauthorized devices.
Hyundai Creta GS 2014-2024 Service Manual: Engine Room Under Cover
Components and components location
Components
1. Engine
room side cover
Repair procedures
Removal and Installation
Engine room under cover front pannel
1.
Remove the engine room under cover (A).
...
Hyundai Creta GS 2014-2024 Service Manual: Repair procedures
Removal
1.
Disconnect the battery negative cable from the battery and then wait
for at least 30 seconds.
2.
Turn the steering wheel so that the front wheels are placed in the straight
ahead position.
3.
...
