Hyundai Creta: Front Seat Belt / Front Seat Belt Buckle

Hyundai Creta GS 2014-2025 Service Manual / Body (Interior and Exterior) / Front Seat Belt / Front Seat Belt Buckle

Components and components location

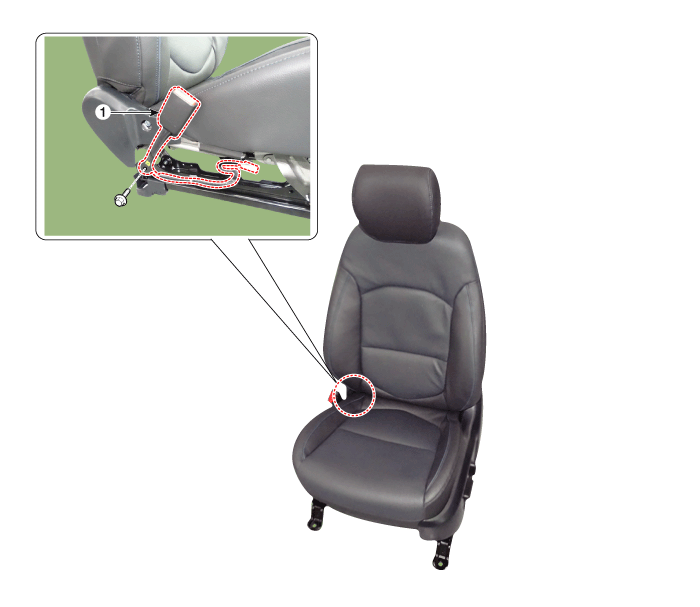

Component Location

1. Front seat belt buckle

Repair procedures

Replacement
1.
Remove the front seat assembly.
(Refer to Front Seat - "Front Seat Assembly")
2.
Disconnect the front seat belt buckle connector wiring (A).
3.
After loosening the mounting bolt, then remove the front seat belt buckle (A).
Tightening torque :
39.2 ~ 53.9 N.m (4.0 ~ 5.5 kgf.m, 28.9 ~ 39.8 lb-ft)

4.
To install, reverse the removal procedure.

•
Replace any damaged clips.
