Hyundai Creta: Front Seat / Front Seat Frame Assembly

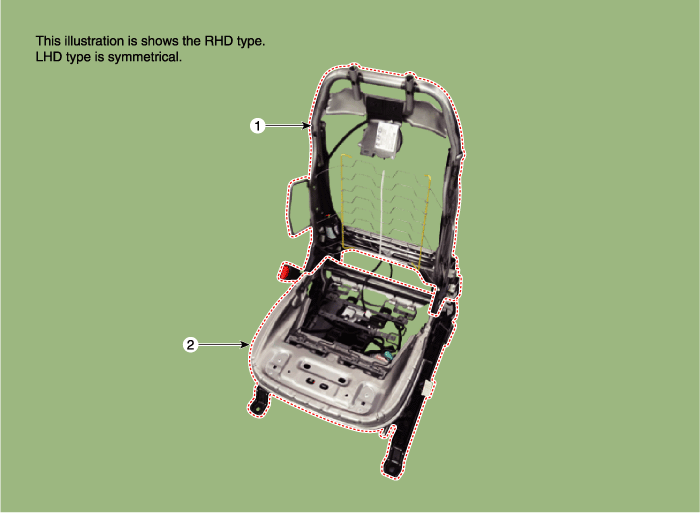

Components and components location
1. Front seat back frame assembly
|
2. Front seat cushion frame assembly
|
Repair procedures
| • |
Put on gloves to protect your hands.
|
|
| • |
When prying with a flat-tip screwdriver or use a prying trim
tool, wrap it with protective tape, and apply protective tape
around the related parts, to prevent damage.
|
| • |
Use a plastic panel removal tool to remove interior trim pieces
to protect from marring the surface.
|
| • |
Take care not to bend or scratch the trim and panels.
|
|
| 1. |
Remove the front seat back cover.
(Refer to Front Seat - "Front Seat Back Cover")
|
| 2. |
Remove the front seat cushion cover.
(Refer to Front Seat - "Front Seat Cushion Cover")
|
| 3. |
After loosening the mounting bolts, then disconnect the front seat back
frame assembly (A) and front seat cushion frame assembly (B).
|
Tightening torque :
44.1 ~ 53.9 N.m (4.5 ~ 5.5 kgf.m, 32.5 ~ 39.8 lb-ft)
|
|
| 4. |
To install, reverse the removal procedure.
| •
|
Remove the side air bag for replacing side air bag installation
seat.
(Refer to Restraint - "Side Airbag (SAB) Module")
|
| •
|
Before service, be fully aware of precautions and service
procedure relevant to air bag.
(Refer to Restraint - "Side Airbag (SAB) Module")
|
|
|
Components and components location
Component Location
1. Front seat cushion cover
Repair procedures
Replacement
...
