Hyundai Creta: Front Seat / Front Seat Shield Outer Cover

Components and components location

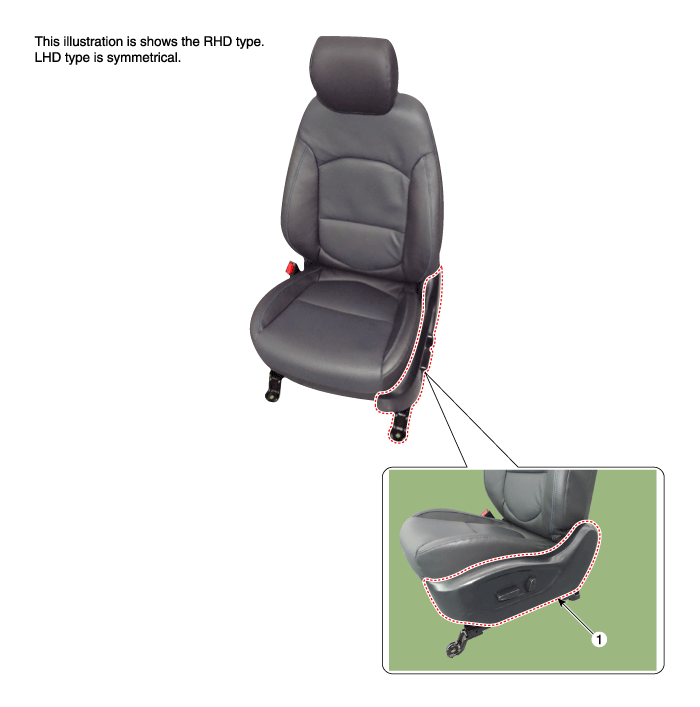

Component Location

1. Front seat shield outer cover


Repair procedures

Replacement

Put on gloves to protect your hands.

When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.
1.
Remove the front seat outer shield cover (A) by pulling forward in the direction of the arrow using screw driver or remover.

2.
Disconnect the connector (A).

3.
To install, reverse the removal procedure.

Make sure the connector is plugged in properly.
Replace any damaged clips.
