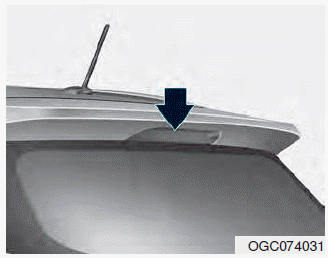

Hyundai Creta: Light bulbs / High mounted stop light
If the light does not operate, we recommend that the vehicle be checked by an authorized HYUNDAI dealer.
Rear combination light bulb
replacement
(1) Stop/Tail light
(2) Tail light
(3) Rear turn signal light
(4) Back-up light
Outside light
1. Open the tailgate
2. Loosen the light assembly retaining
screws with a cross-tip screwdr ...
License plate light bulb replacement
1.Remove the tailgate trim.
2.Remove the socket by turning it
counterclockwise.
3.Remove the bulb by pulling it
straight out.
4.Install a new bulb.
5.Install the socket by turning it
clock ...
