Hyundai Creta: Your vehicle at a glance / Instrument panel overview

Hyundai Creta GS 2014-2025 Owners Manual / Your vehicle at a glance / Instrument panel overview

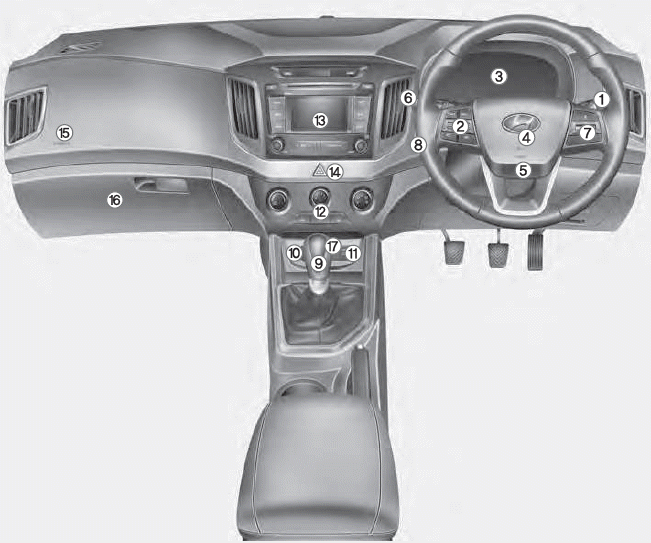

■ Right Hand Drive

1. Light control/Turn signals
2. Steering wheel audio controls
3. Instrument cluster
4. Horn
5. Driver's front air bag
6. Wiper/Washer
7. Trip mode switch*/Cruise control switch
8. Engine Start/Stop button / Key ignition switch
9. Transaxle Gear Shift lever
10. Power outlet
11. Cigarette lighter
12. Climate control system
13. Audio system
14. Hazard switch
15. Passenger's front air bag
16. Glove box
17. AUX, USB and iPod® port

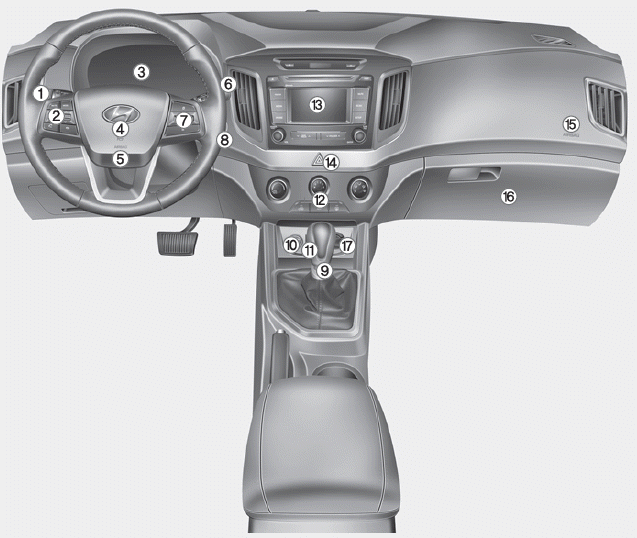

■ Left Hand Drive

1. Light control/Turn signals
2. Steering wheel audio controls
3. Instrument cluster
4. Horn
5. Driver's front air bag
6. Wiper/Washer
7. Trip mode switch*/Cruise control switch
8. Engine Start/Stop button / Key ignition switch
9. Transaxle Gear Shift lever
10. Cigarette lighter
11. AUX, USB and iPod® port
12. Climate control system
13. Audio system
14. Hazard switch
15. Passenger's front air bag
16. Glove box
17. Power outlet

Interior overview

■ Right Hand Drive 1. Door lock/unlock button 2. Outside rearview mirror folding switch 3. Outside rearview mirror control switch 4. Power window switches 5. Power window lock switch ...

Engine compartment

■ Gasoline Engine (Gamma 1.6 MPI) - Right Hand Drive ■ Gasoline Engine (Gamma 1.6 MPI) - Left Hand Drive 1. Engine oil filler cap 2. Engine oil dipstick 3. Brake/clutch* fluid reservoir ...
