Hyundai Creta: Brake System / Master Cylinder

Components and components location

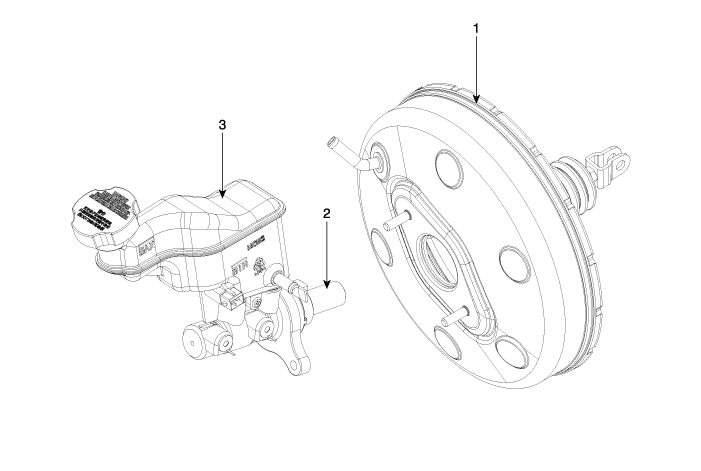

Components

1. Brake booster
2. Master cylinder assembly
3. Reservior


Repair procedures

Removal
1.
Turm ignition switch OFF and disconnect the negative (-) battery cable.
2.
Disconnect the battery positive terminal and them remove the battery.
3.
Disconnect the ECM connector and the ECM and battery tray.
4.
Disconnect the brake fluid level switch connector from the reservoir.

5.
Remove the brake fluid from the master cylinder reservoir with a syringe.

Do not spill brake fluid on the vehicle, it may damage the paint; if brake fluid does contact the paint, wash it off immediately with water.
Be sure to completely remove foreign substances from around brake fluid reservoir and cap before opening the reservoir cap. If not, it may cause contamination of brake fluid and deterioration in braking performance.
6.
Disconnect brake tube from the master cylinder.
Tightening torque:
CBS: 12.7 ~ 16.7 N.m (1.3 ~ 1.7 kgf.m, 9.4 ~ 12.3 lb-ft)
ABS: 12.7 ~ 16.7 N.m (1.3 ~ 1.7 kgf.m, 9.4 ~ 12.3 lb-ft)
ESP: 18.6 ~ 22.6 N.m (1.9 ~ 2.3 kgf.m, 13.7 ~ 16.6 lb-ft)

7.
Remove the master cylinder from the brake booster after loosening the mounting nuts.
Tightening torque:
12.7 ~ 16.7 N.m (1.3 ~ 1.7 kgf.m, 9.4 ~ 12.3 lb-ft)

8.
Remove the snap pin and clevis pin

9.
Remove the master cylinder.
Installation
1.
Install in the reverse order of removal.
2.
After installation, bleed the brake system.
(Refer to Brake System -"Brake System Bleeding")
(Refer to ESP (Electronic Stability Program) System - "ESP System Bleeding")
(Refer to ABS (Anti - Lock Brake System) - "ABS System Bleeding")
