I : Inspect and if necessary, adjust, correct, clean or replace.
R : Replace or change.

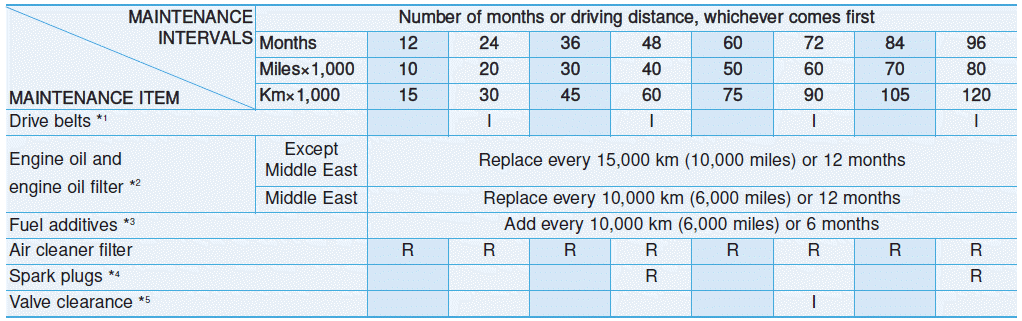

*1 : Adjust alternator and power steering (and water pump drive belt) and air
conditioner drive belt (if equipped).
Inspect and if necessary correct or replace.
*2 : Check the engine oil level and leak every 500 km (350 miles) or before
starting a long trip.
*3 : If good quality gasolines that meet Europe Fuel standards (EN228) or
equivalents including fuel additives is not available, one
bottle of additive is recommended. Additives are available from your authorized
HYUNDAI dealer along with information on how
to use them. Do not mix other additives.
*4 : For your convenience, it can be replaced prior to it's interval when you do
maintenance of other items.
*5 : Inspect for excessive valve noise and/or engine vibration and adjust if
necessary. We recommend that the system be checked
by an authorized HYUNDAI dealer.
I : Inspect and if necessary, adjust, correct, clean or replace.
R : Replace or change.

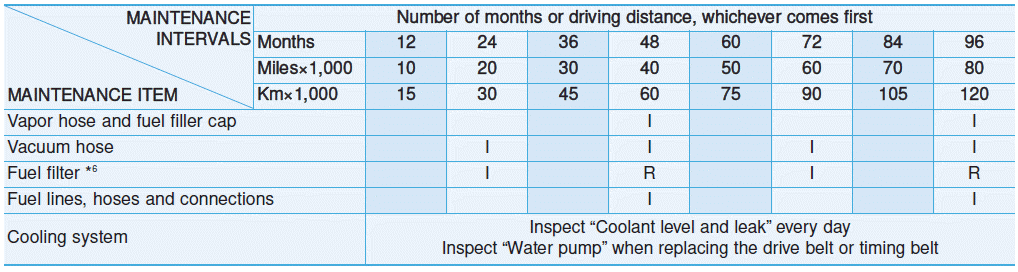

*6 : The fuel filter is considered to be maintenance free but periodic
inspection is recommended for this maintenance schedule
depends on fuel quality. If there are some important safety matters like fuel
flow restriction, surging, loss of power, hard starting
problem etc, replace the fuel filter immediately regardless of maintenance
schedule and consult an authorized HYUNDAI
dealer for details.
I : Inspect and if necessary, adjust, correct, clean or replace.
R : Replace or change.

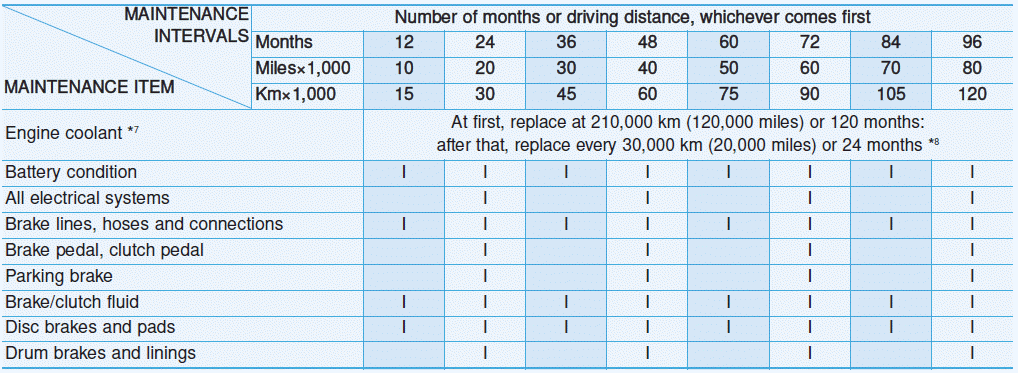

*7 : When adding coolant, use only a qualified coolant additive for your vehicle
and never mix hard water in the coolant filled at
the factory. An improper coolant mixture can result in serious malfunction or
engine damage.
*8 : For your convenience, it can be replaced prior to it’s interval when you do
maintenance of other items.
I : Inspect and if necessary, adjust, correct, clean or replace.
R : Replace or change.

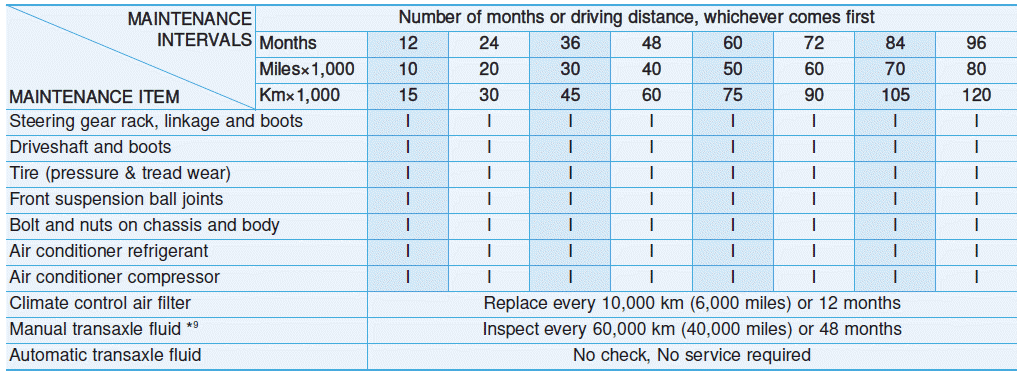

*9 : Manual transaxle fluid should be changed anytime they have been submerged
in water.
