Components and components location

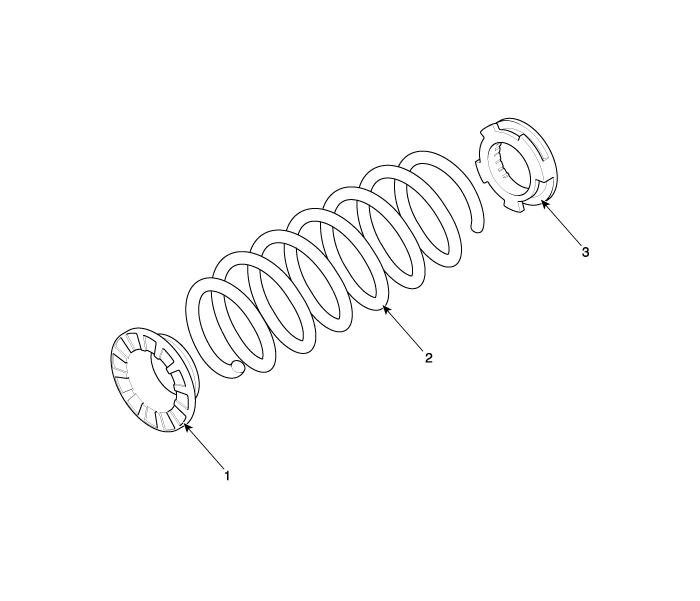

Components

1. Spring lower pad
2. Spring

3. Spring upper pad

Repair procedures

Removal

1.	Loosen the wheel nuts slightly. Raise the vehicle, and make sure it is securely supported.

Remove the rear wheel and tire (A).

Tightening torque :

88.2 ~ 107.8 N.m (9.0 ~ 11.0 kgf.m, 65.0 ~ 79.5 lb-ft)

•	Be careful not to damage the hub bolts when removing the rear wheel and tire.

Loosen the bolt and then remove the rear shock absorber (A) from the torsion beam axle. [Both side]

Tightening torque :

98.1 ~ 117.7 N.m (10.0 ~ 12.0 kgf.m, 72.3 ~ 86.8 lb-ft)

4.	Pull the torsion beam axle in the direction of a down and then remove the coil spring (A).

5.	Install in the reverse order of removal.

Inspection

1.	Check the coil spring for crack and deformation.

2.	Check the coil spring pad for damage and deformation.
