Hyundai Creta: Rear Glass Defogger / Rear Glass Defogger Switch: Repair procedures
Hyundai Creta GS 2014-2024 Service Manual / Body Electrical System / Rear Glass Defogger / Rear Glass Defogger Switch: Repair procedures
| Inspection |
| 1. |
The windshield deicer switch inputs can be checked using the GDS.
|
| 2. |
To check the input value of windshield deicer switch, select option
"Body Control Module".
|
| 3. |

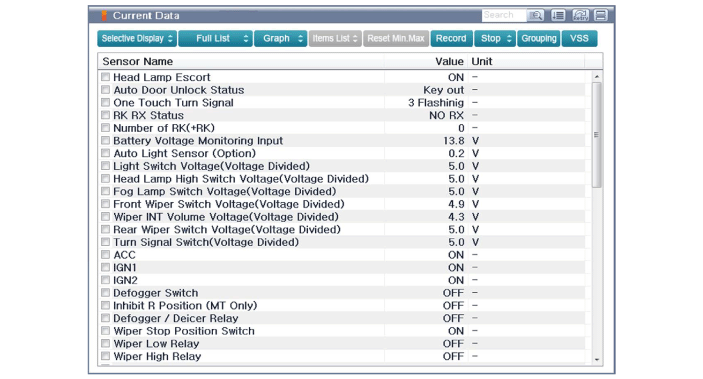

Select option "Current Data".
|
| 4. |

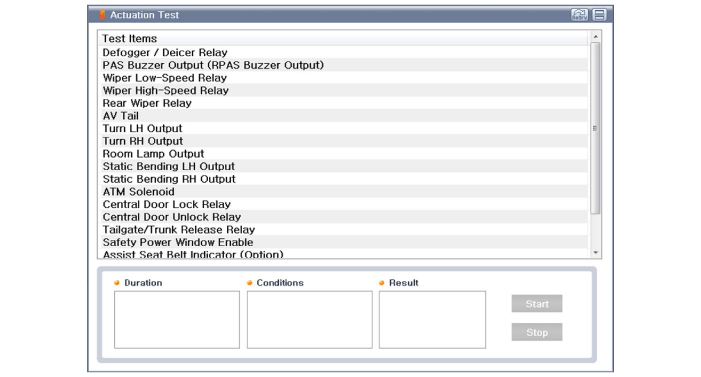

To perform functional test on SJB outputs, select "Actuation Test".
|
| Removal |
| 1. |
Disconnect the negative (-) battery terminal.
|
| 2. |
Remove the audio unit or the AVN head unit.
(Refer to Audio - "Audio Unit")
(Refer to AVN system - "AVN Head Unit")
|
| 3. |
Remove the heater and A/C controll unit.
(Refer to Heating,Ventilation, Air Conditioning - "Heater & A/C Control
Unit (Manual)")
(Refer to Heating, Ventilation, Air conditioning - "Heater & A/C Control
Unit (DATC)")
|
| Installation |
| 1. |
Install the heater and A/C control unit.
|
| 2. |
Install the audio unit or the AVN head unit.
|
| 3. |
Connect the negative (-) battery terminal.
|
