Components and components location

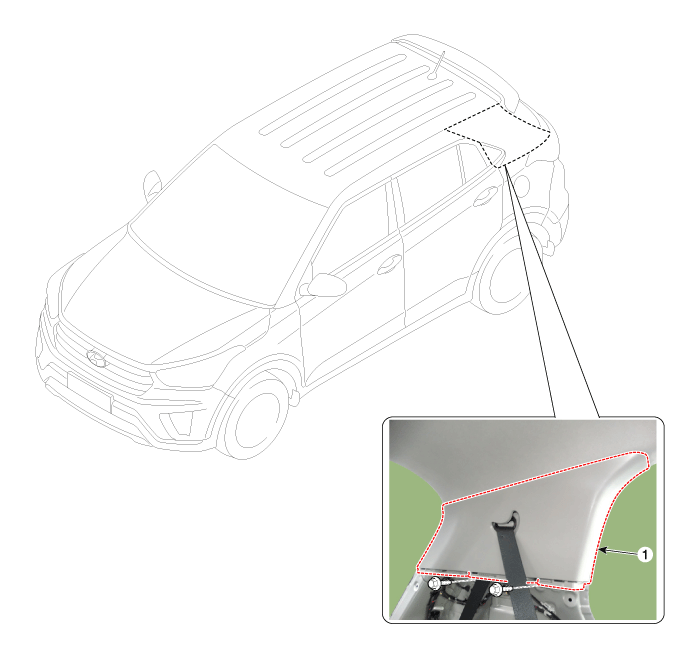

Component Location

1. Rear pillar trim

Repair procedures

Replacement

•
Put on gloves to protect your hands.

•
When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
•
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
•
Take care not to bend or scratch the trim and panels.
1.
Remove the luggage side trim.
(Refer to Interior Trim - "Luggage Side Trim")
2.
After loosening the mounting bolt, then remove the rear seat belt lower anchor (A).
3.
After loosening the mounting bolts, then remove the rear pillar trim (A).
4.
To install, reverse the removal procedure.

•
Replace any damaged clips.
