Components and components location

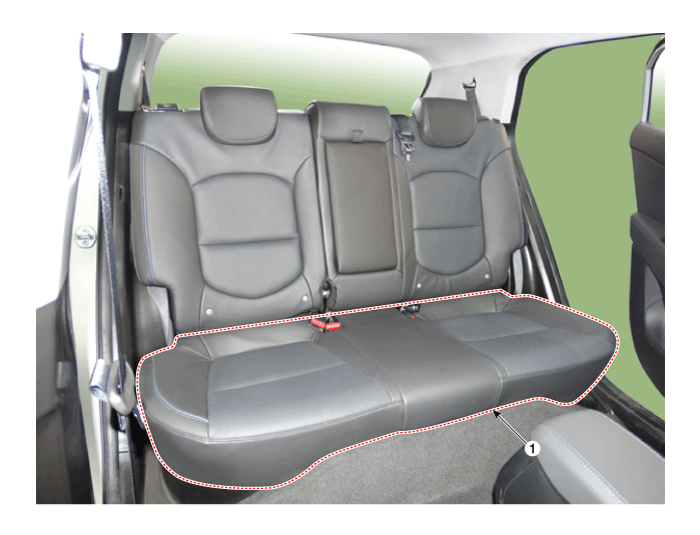

Component Location

1. Rear seat cushion cover


Repair procedures

Replacement
1.
Remove the rear seat cushion assembly.
(Refer to Rear Seat - "Rear Seat Assembly")
2.
After removing the hog-ring clips (A) on the rear of seat cushion and remove the rear seat cushion cover (B).
[Front side]

[Rear side]

3.
To install, reverse the removal procedure.

•
To prevent wrinkles, make sure the material is stretched evenly over the cover (B) before securing the clips (A).
•
Replace the hog-ring clips with new ones using special tool (C) (09880-4F000).
