Hyundai Creta: Hood / Repair procedures
| Adjustment |
| 1. |

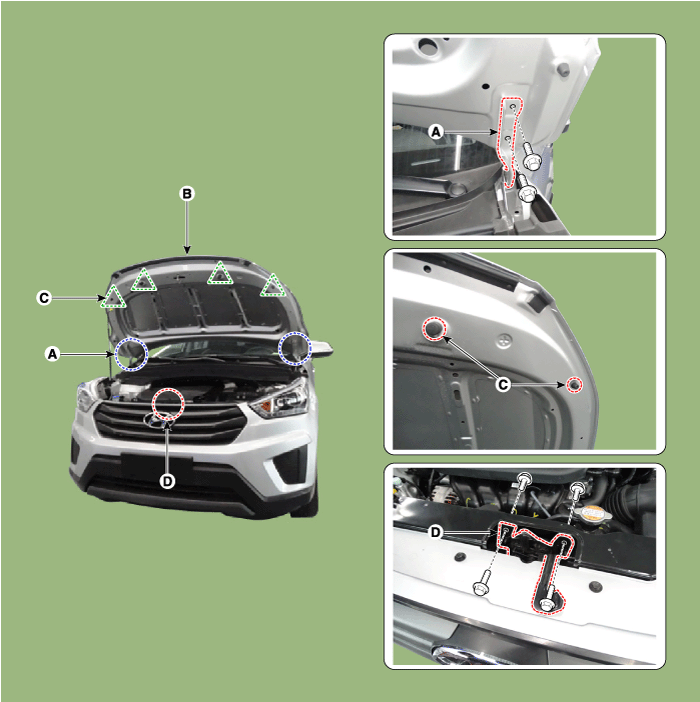

After loosening the hinge (A) mounting bolt, adjust the hood (B) by
moving it up or down, or right or left.
|
| 2. |
Adjust the hood height by turning the hood overslam bumpers (C).
|
| 3. |
After loosening the hood latch (D) mounting bolts, adjust the latch
by moving it up or down, or right or left.
|
Hood
...
Hood Assembly
Components and components location
Component Location
1. Hood assembly
Repair procedures
Replacement
...
