Hyundai Creta: Rear Door / Repair procedures
Glass Adjustment
| • |
Check the glass run channel for damage or deterioration, and
replace them if necessary.
|
|
| 1. |
Remove the rear door trim.
(Refer to Rear Door - "Rear Door Trim")
|
| 2. |
After loosening the mounting screws, then remove the rear door trim
seal mounting bracket.
|
| 3. |
Remove the rear door trim seal.
| •
|
Replace any damaged door trim seal.
|
|
|
| 4. |
Carefully move the rear door window glass (A) until the glass mounting
bolts are visible, then loosen them.
|
| 5. |
Check that the glass moves smoothly.
|
Door Striker Adjustment
| • |
Make sure the door latches securely without slamming it. If
necessary adjust the striker (A): The striker nuts are fixed.
The striker can be fine adjusted up or down, and in or out.
|
|
| 1. |
Loosen the screws (B) just enough for the striker to move.
|
Tightening torque :
(B): 16.7 ~ 21.6 N.m (1.7 ~ 2.2 kgf.m, 12.3 ~ 15.9 lb-ft)
|
|
| 2. |
Tap on the striker with a plastic hammer to adjust the striker. The
striker will not move much, but will give some adjustment.
|
| 3. |
Hold the outer handle out, and push the door against the body to be
sure the striker allows a flush fit. If the door latches properly, tighten
the screws and recheck.
|
Door Position Adjustment
| • |
After installing the door, check for a flush fit with the adjacent
body panels, then check for equal gaps between the front, rear,
and bottom, door edges and the body. Check that the door and
body edges are parallel. Before adjusting, replace the mounting
bolts.
|
|
| 1. |
Check that the door and body edges are parallel.
|
| 2. |
Place the vehicle on a firm, level surface when adjusting the doors.
|
| 3. |

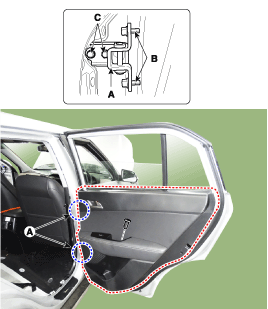

Adjust at the hinges (A) :
| • |
Loosen the door mounting bolts slightly, and move the door in
or out until it aligns flush with the body.
|
| • |
Loosen the hinge mounting bolts slightly, and move the door
backward or forward, up or down as necessary to equalize the
gaps.
|
| • |
Place a shop towel on the jack to prevent damage to the door
when adjusting the door.
|
|
Tightening torque :
(B): 21.6 ~ 26.5 N.m (2.2 ~ 2.7 kgf.m, 15.9 ~ 19.5 lb-ft)
(C): 33.3 ~ 41.2 N.m (3.4 ~ 4.2 kgf.m, 24.6 ~ 30.4 lb-ft)
|
|
| 4. |
Grease the pivot portions of the hinges indicated by the arrows.
|
| 5. |
Check for water leaks.
|
Components
1. Rear door trim
2. Rear door belt inside weatherstrip
3. Rear door trim seal
4. Rear door panel
5. Rear door belt outside weatherstrip
6. ...
Components and components location
Component Location
1. Rear door trim
Repair procedures
Replacement
...
