Hyundai Creta: SRSCM / Schematic diagrams

Hyundai Creta GS 2014-2024 Service Manual / Restraint / SRSCM / Schematic diagrams

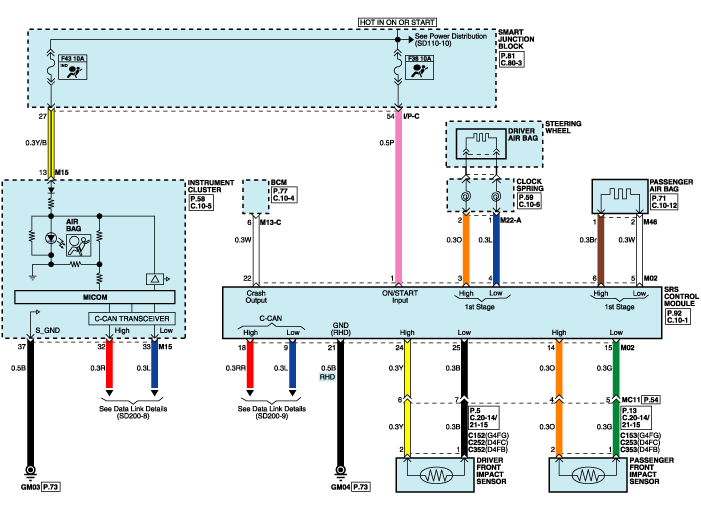

Circuit Diagram (1)

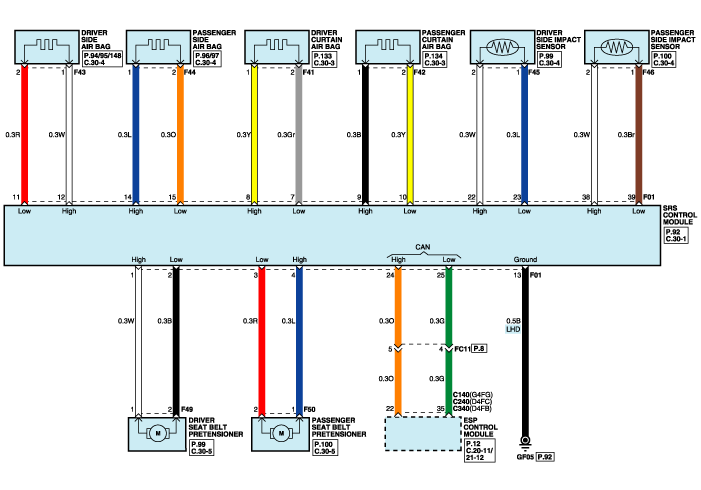

Circuit Diagram (2)

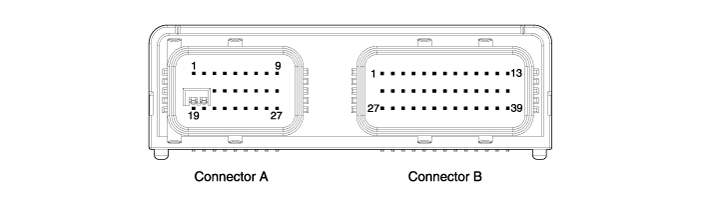

SRSCM Connector Terminal

Pin	Function (Connector A)	Pin	Function (Connector B)
1	IGN - 1	1	Retractor pretensioner - Front, Driver - High (+)
2	-	2	Retractor pretensioner - Front, Driver - Low (-)
3	Driver airbag 1st stage - High (+)	3	Retractor pretensioner - Front, Passenger - Low (-)
4	Driver airbag 1st stage - Low (-)	4	Retractor pretensioner - Front, Passenger - High (+)
5	Passenger airbag 1st stage - Low (-)	5	-
6	Passenger airbag 1st stage - High (-)	6	-
7	-	7	Curtain airbag - Driver - Low (-)
8	-	8	Curtain airbag - Driver - High (+)
9	C-CAN SRSCM to Vehicle - Low (-)	9	Curtain airbag - Passenger - High (+)
10	Shorting bag	10	Curtain airbag - Passenger - Low (-)
11	Shorting bag	11	Side airbag - Front, Driver - Low (-)
12	-	12	Side airbag - Front, Driver - High (-)
13	-	13	Ground
14	Front impact sensor - passenger - High(+)	14	Side airbag - Front, Passenger - High (+)
15	Front impact sensor - passenger - Low(+)	15	Side airbag - Front, Passenger - Low (-)
16	-	16	-
17	-	17	-
18	C-CAN SRSCM to Vehicle - High (+)	18	-
19	-	19	-
20	-	20	-
21	GND	21	-
22	Crash output	22	Side impact sensor - Front, Driver - High (+)
23	-	23	Side impact sensor - Front, Driver - Low (+)
24	Front impact sensor driver - High (+)	24	Local - CAN SRSCM to ESP - High (+)
25	Front impact sensor driver - Low (-)	25	Local - CAN SRSCM to ESP - Low (-)
26	-	26	-
27	-	27	-
		28	-
		29	-
		30	-
		31	-
		32	-
		33	-
		34	-
		35	-
		36	-
		37	-
		38	Side impact sensor - Front, Passenger - High (+)
		39	Side impact sensor - Front, Passenger - Low (+)
