Hyundai Creta: ABS(Anti-Lock Brake System) / Schematic diagrams

Schematic diagram

Terminal Function

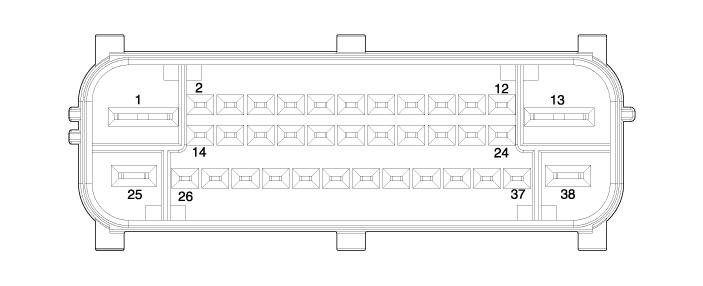

ABS Connector Input/ Out put
Wire No.
Designation
Current12V(AMPS)
max.permissible wire resistance (OHMS)
13
Ground for recirculation pump
137(Rush)
10 m
38
Ground for solenoid valves and ECU
40
10m
1
Voltage supply for pump motor
137(Rush)
10 m
25
Voltage supply for solenoid valves
40
10m
29
IGNITION1(+)
50m
60 m
21,31,20,32
Active wheel signal wheel speed sensor FL, FR, RL,RR signal
16.8m
250m
34,18,33,19
Voltage supply for the active wheel speed sensor FL,FR, RL, RR
30m
250 m
16
Brake light switch (Signal)
10m
250m
14
Chassis CAN High
30m
250 m
17
Wheel speed sensor output
16m
250m
2
Chassis CAN Low
30m
250 m
7
G-sensor power
50m
250 m
8
G-sensor ground
50m
250 m
30
G-sensor signal
50m
250 m
