Hyundai Creta: Ignition System / Spark Plug
Description and operation

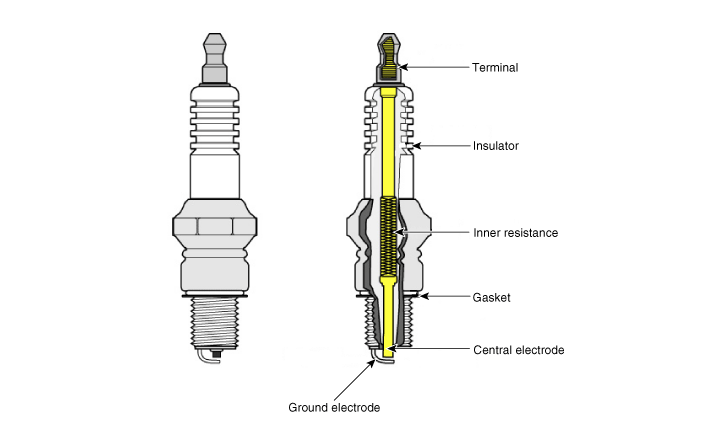

A spark plug is a device for delivering electric current from an ignition system
to the combustion chamber of a spark-ignition engine to ignite the compressed
fuel/air mixture therein by means of an electric spark, while containing combustion
pressure within the engine. A spark plug has a metal threaded shell, electrically
isolated from a central electrode by a porcelain insulator.
Specifications
Item
|
Specification
|
Type
|
LZKR6B-10E, RER8MC,
ELR9QC10
|
Gap
|
0.9 ~ 1.0 mm
(0.0354 ~ 0.0394 in )
|
Repair procedures
| 1. |
Accelerate the engine to about 3,000 rpm 3 times or more.
|
| 2. |
Remove the spark plug.
|
| 3. |
Check the spark plug visually.
If the electrode is dry, the spark plug is normal.
If the electrode is wet, check the damage and electrode gap as below.
|
| 4. |
Check the spark plug for any damage on its thread and insulator.
If there is damage, replace the spark plug.
|
| 5. |
Check the electrode. Measure the insulation resistance with an ohmmeter.
If the resistance is less than the specified value, adjust the electrode
gap.
|
Specification : 10 MΩ or more
|
|
| 6. |
Check the spark plug electrode gap.
If the gap is greater than the maximum, replace the spark plug.
|
Specification : 1.0 ~ 1.1 mm ( 0.0394 ~ 0.0433 in.)
|
| •
|
If adjusting the gap of a new spark plug, bend only
the base of the ground electrode. Do not touch the tip.
Never attempt to adjust the gap on a used plug.
|
|
|
The combustion temporarily becomes unstable, due to the aged fuel and the carbon
deposits accumulated on the spark plug(s) after long-term storage.
| 1. |
Start the engine and keep the engine running at idle for 2 minutes.
|
| 2. |
Step on the accelerator pedal and hold it steady at 4500 rpm with the
shift lever in N position to warm up the engine until the temperature
of the engine coolant reaches 80°C.
|
| 3. |
Keep the engine running at 2500~3000 rpm in the N position for 15 minutes.
|
| • |
The 2nd method should be performed only if the 1st method fails
(the misfire-related codes recur).
|
|
| 4. |
Start the engine and keep the engine running at idle for 2 minutes.
|
| 5. |
Drive the vehicle for over 20 minutes, keeping the engine speed above
3500 rpm.
| •
|
If equipped with manual transaxle, shift the gear properly
for keeping the engine speed above 3500 rpm.
|
|
|
| 1. |
Remove the ignition coil.
(Refer to Ignition System - "Ignition Coil")
|
| 2. |
Using a spark plug wrench, remove the spark plug (A).
| •
|
Be careful that no contaminates enter into spark plug
holes.
|
|
|
| 1. |
Install in the reverse order of removal.
|
Tightening torque :
14.7 ~ 24.5 N.m (1.5 ~ 2.5 kgf.m, 10.8 ~ 18.0 Ib-ft)
|
|
Description and operation
Description
An ignition coil is an induction coil in an engine's ignition system which transforms
the battery's low voltage to the high voltage ne ...
