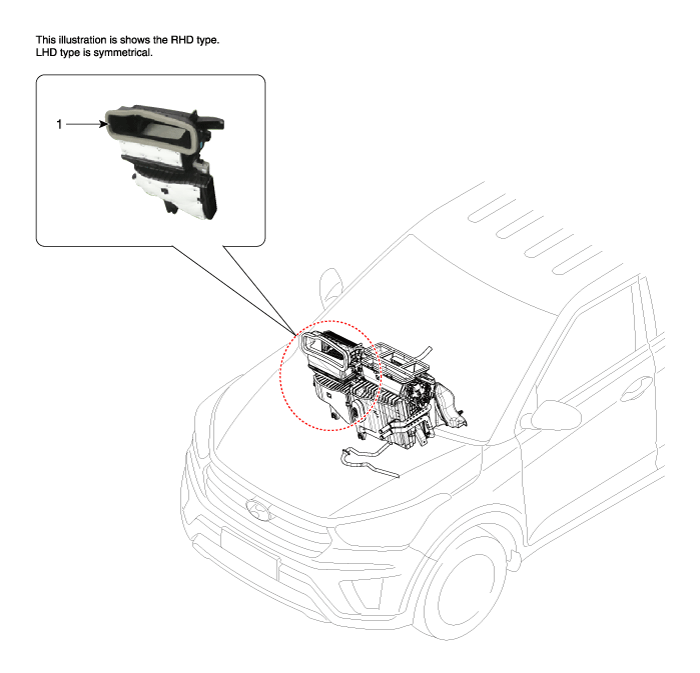

Component Location |
1. Blower unit assembly |

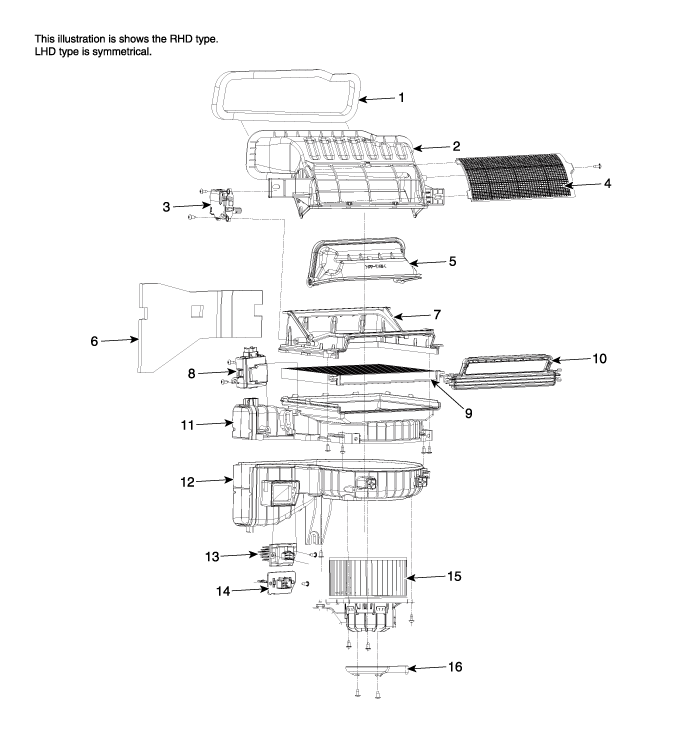

Components |
1. Inlet Seal 2. Intake duct case 3. Intake actuator 4. Intake upper case 5. Intake door 6. Blower unit pad 7. Intake lower case 8. Cluster ionizer |
9. Air filter 10. Filter cover assembly 11. Blower upper cover 12. Blower lower case 13. Power mosfet 14. Resistor assembly 15. Blower motor 16. Blower lowr case |
Replacement |
When prying with a flat-tip screwdriver or use a prying trim tool, wrap
it with protective tape, and apply protective tape around the related
parts, to prevent damage.
|
1. |
Disconnect the negative (-) battery terminal.
|
2. |
Recover the refrigerant with a recovery/recycling/charging station.
|
3. |
When the engine is cool, drain the engine coolant from the radiator.
(Refer to Engine Mechanical System - “Coolant”)
|
4. |
Remove the cowl top cover.
(Refer to Body - "Cowl Top Cover")
|
5. |
Remove the bolts and the expansion valve (A) from the evaporator core.
|
6. |
Disconnect the inlet (A) and outlet (B) heater hoses from the heater
unit.
|
7. |
Loosen the cowl cross member mounting bolts.
|
8. |
Remove both sides of front seat assembly.
(Refer to Front Seat - "Front Seat Assembly")
|
9. |
Remove the main crash pad assembly.
(Refer to Crash Pad - "Main Crash Pad Assembly")
|
10. |
Disconnect the steering column connectors.
(Refer to Steering System - "Steering Column and Shaft")
|
11. |
Down the steering column after loosening the mounting bolts.
(Refer to Steering System - "Steering Column and Shaft")
|
12. |
Remove the shift lever assembly.
(Refer to Automatic Transaxle System - "Shift lever")
|
13. |
Disconnect the airbag control module (SRSCM) connector (A).
|
14. |
Disconnect the junction box connectors (A).
|
15. |
Disconnect the multi box connectors (A).
[Driver's side]
[Passenger's side]
|
16. |
Disconnect the connectors (A) and the mounting clips in the front pillar.
[Driver's side]
[Passenger's side]
|
17. |
Separate the radiator assembly to obtain space for remove the air guard.
|
18. |
Remover the rear air duct (A) after detaching the nuts.
|
19. |
Remove the drain hose (A).
|
20. |

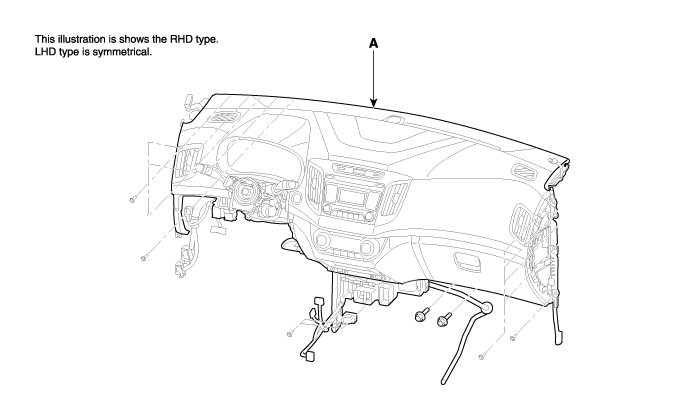

After loosening the bolts remove the main crash pad and cowl cross bar
assembly (A) together.
|
21. |
Disconnect the heater & blower unit connectors.
|
22. |
Remove the heater and blower unit (A) from the cowl cross bar after
loosening the mounting nuts.
|
23. |

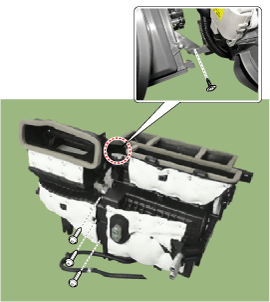

Separate the blower unit (B) from the heater unit (A) after loosening
the screws.
|
24. |
Install in the reverse order of removal.
|
