Hyundai Creta: Airbag Module / Driver Airbag (DAB) Module and Clock Spring
Description and operation
Driver Airbag (DAB) is installed in the steering wheel and electrically connected
to SRSCM via the clock spring. It protects the driver by deploying the airbag
when frontal crash occurs. The SRSCM determines deployment of the Driver Airbag
(DAB).
| • |
Never attempt to measure the circuit resistance of the airbag
module (squib) even if you are using the specified tester. If
the circuit resistance is measured with a tester, accidental
airbag deployment will result in serious personal injury.
|
|

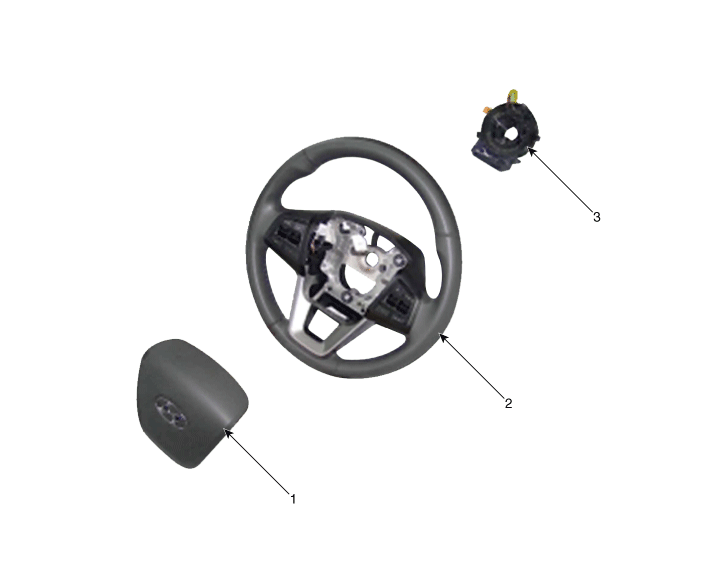

Components and components location
1. Driver airbag (DAB)
2. Steering wheel
|
3. Clock spring
|
Repair procedures
| 1. |
Disconnect the battery negative cable and wait for at least three minutes
before beginning work.
|
| 2. |
Remove the driver airbag mounting screw (2EA).
|
| 3. |
Remove the wiring fixing clip (A) and disconnect the horn connector
(B).
|
| 4. |
Release the connector locking pin, then disconnect the driver airbag
module connector (B).
| •
|
The removed airbag module should be stored in a clean,
dry place with the pad cover facing up.
|
|
|
| 5. |
Disconnect the clock spring and horn connector, then remove the clock
spring.
|
Driver Airbag (DAB)
If any improper parts are found during the following inspection, replace the
airbag module with a new one.
| • |
Never attempt to measure the circuit resistance of the airbag
module (squib) even if you are using the specified tester. If
the circuit resistance is measured with a tester, accidental
airbag deployment will result in serious personal injury.
|
|
| 1. |
Check pad cover for dents, cracks or deformities.
|
| 2. |
Check the airbag module for denting, cracking or deformation.
|
| 3. |
Check hooks and connectors for damage, terminals for deformities, and
harness for binds.
|
| 4. |
Check airbag inflator case for dents, cracks or deformities.
|
| 5. |
Install the airbag module to the steering wheel to check for fit or
alignment with the wheel.
|
Clock Spring
| 1. |
If, as a result of the following checks, even one abnormal point is
discovered, replace the clock spring with a new one.
|
| 2. |
Check connectors and protective tube for damage, and terminals for deformities.
|
| 1. |
Set the front tires straight-ahead.
|
| 2. |
Turn the ignition switch OFF.
|
| 3. |
Disconnect the battery negative cable from the battery and wait for
at least three minutes before beginning the work.
|
| 4. |
Connect the clock spring harness connector and horn harness connector
to the clock spring.
|
| 5. |
Factory setting for the clock spring is neutral.
| 1) |
If white cable is visible through the product's 10 O' Clock
Neutral Check Window, then the spring is at neutral.
|
| 2) |
If white cable is not visible through the product's 10 O' Clock
Neutral Check Window, then manually adjust the setting to neutral.
|
Neutral Check Window : Normal
|
Neutral Check Window : Fault
|
|
|
White cable is visible through 10 O' Clock Neutral Check Window
|
White cable is not visible through 10 O' Clock Neutral Check Window
|
|
| 6. |

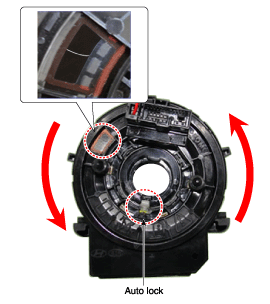

Clock spring manual neutral setting procedure.
| (1) |
Press the Auto Lock at 6 O' Clock and turn clockwise 3 rotations.
|
| (2) |
Press the Auto Lock at 6 O' Clock and turn counter-clockwise
3 rotations.
|
| (3) |
If white cable is visible through the 10 O' Clock Neutral Check
Window, then the spring is set to neutral.
|
|
| 7. |
Install the steering wheel column shroud and the steering wheel.
(Refer to Steering System - "Steering Column and Shaft")
|
| 8. |
Connect the Driver Airbag (DAB) module connector and horn connector,
and then install the Driver Airbag (DAB) module on the steering wheel.
|
| 9. |
Connect the battery negative cable.
|
| 10. |
After installing the airbag, confirm proper system operation :
| • |
Turn the ignition switch ON; the SRS indicator light should
be turned on for about six seconds and then go off.
|
| • |
Make sure horn button works.
|
|
