The hazard warning flasher serves as a warning to other drivers to exercise extreme caution when approaching, overtaking, or passing your vehicle.
It should be used whenever emergency repairs are being made or when the vehicle is stopped near the edge of a roadway.

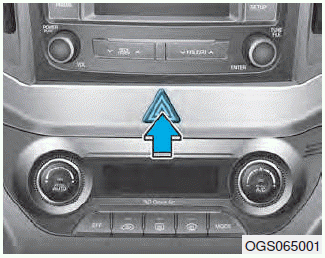

To turn the hazard warning flasher on or off, press the hazard warning flasher button with the ignition switch in any position. The button is located in the center of instrument panel garnish between audio unit and air conditioning unit.
All turn signal lights will flash simultaneously.
In case of an emergency while drivingHyundai Creta GS 2014-2019 Service Manual: Overhead Console Lamp: Repair procedures
Removal
1.
Disconnect the negative (-) battery terminal.
2.
If necessary to replace the bulb only, replace the bulb after opening
the overhead console lens (A).
3.
Remove the overhead console (A) a ...
Hyundai Creta GS 2014-2019 Service Manual: Manifold Absolute Pressure Sensor (MAPS)
Description and operation
Description
Manifold Absolute Pressure Sensor (MAPS) is a speed-density type sensor and
is installed on the surge tank. It senses absolute pressure of the surge tank
and transfers the analog signal proportional to the pressure to the ECM. By
using ...
