Hyundai Creta: Ignition System / Ignition Coil

Hyundai Creta GS 2014-2025 Service Manual / Engine Electrical System / Ignition System / Ignition Coil

Description and operation

Description

An ignition coil is an induction coil in an engine's ignition system which transforms the battery's low voltage to the high voltage needed to create an electric spark in the spark plugs to ignite the fuel. Coils have an internal resistor while others rely on a resistor wire or an external resistor to limit the current flowing into the coil from the battery 12 V supply.

Schematic diagrams

Circuit Diagram

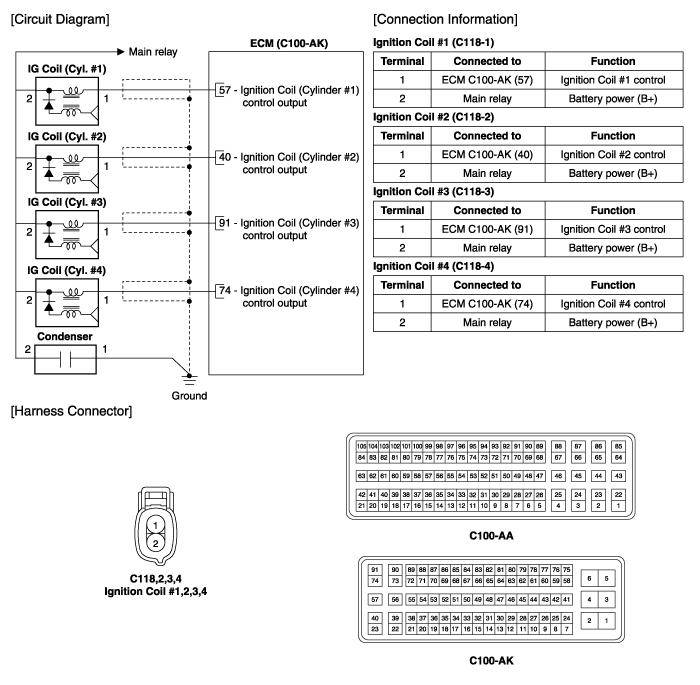

[M/T]

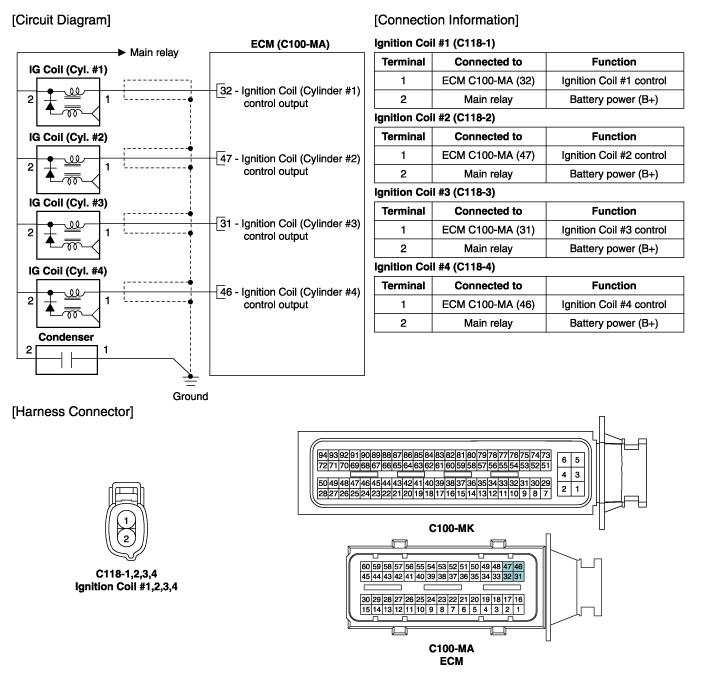

[A/T]

Repair procedures

Removal

1.	Disconnect the battery nagative terminal.

2.	Remove the engine cover.

3.	Remove the center cover (A).

Remove the ignition coil (A).

•	When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).

Installation

Install in the reverse order of removal.

Center cover installation bolts:

4.9 ~ 7.8 N.m (0.5 ~ 0.8 kgf.m, 3.6 ~ 5.8 Ib-ft)

Ignition coil installation bolts:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 Ib-ft)

Inspection

Measure the primary coil resistance between terminals (+) and (-).

Standard value: 0.75Ω ± 15%
