Hyundai Creta: Scheduled maintenance service / Maintenance under severe usage conditions (Except Mexico) – Gasoline engine
The following items must be serviced more frequently on cars mainly used under severe driving conditions.

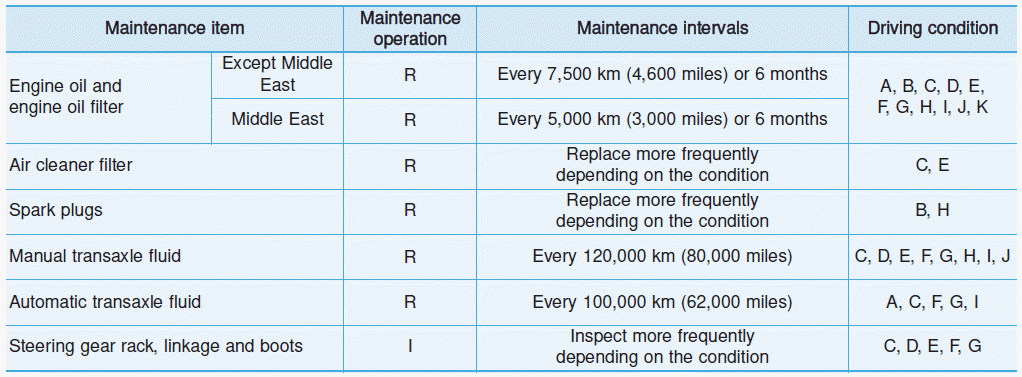

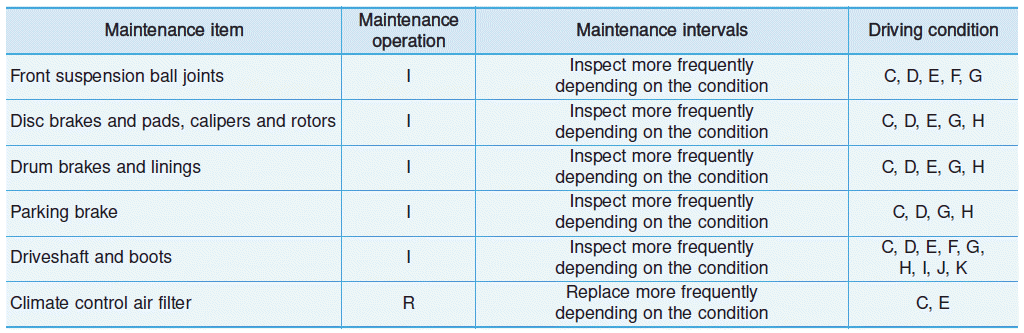

Refer to the chart below for the appropriate maintenance intervals.
I : Inspect and if necessary, adjust, correct, clean or replace
R : Replace or change
Severe driving conditions
A : Repeated short distance driving
B : Extensive idling
C : Driving in dusty, rough roads
D : Driving in areas using salt or other corrosive
materials or in very cold weather
E : Driving in the condition of inflowing sand or dust into
engine
F : Driving in heavy traffic area
G : Driving in mountainous areas
H : Towing a trailer
I : Driving for patrol car, taxi, commercial car or vehicle
towing
J : Driving over 170 km/h (106 mile/h)
K : Frequently driving in stop-and-go condition
Normal maintenance schedule (Except Mexico) – Gasoline engine
I : Inspect and if necessary, adjust, correct, clean or replace.
R : Replace or change.
*1 : Adjust alternator and power steering (and water pump drive belt) and air
conditioner drive belt (if ...
Normal maintenance schedule (Except Mexico) - Diesel engine
I : Inspect and if necessary, adjust, correct, clean or replace.
R : Replace or change.
*1 : Inspect drive belt tensioner, idler and alternator pulley and if necessary
correct or replace.
*2 ...
