Hyundai Creta: Engine coolant / Recommended engine coolant

Hyundai Creta GS 2014-2025 Owners Manual / Maintenance / Engine coolant / Recommended engine coolant

Use only soft (distilled) water in the coolant mixture.
The engine in your vehicle has aluminum engine parts and must be protected by an ethylene-glycolbased coolant to prevent corrosion and freezing.
DO NOT USE alcohol or methanol coolant or mix them with the specified coolant.
Do not use a solution that contains more than 60% antifreeze or less than 35% antifreeze, which would reduce the effectiveness of the solution.

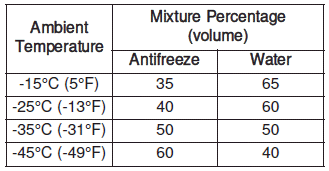

For mixture percentage, refer to the following table.

Checking the coolant level

WARNING Removing radiator cap Never attempt to remove the radiator cap while the engine is operating or hot. Doing so might lead to cooling system and engine damage and could r ...

Changing the coolant

We recommend that the coolant be replaced by an authorized HYUNDAI dealer. NOTICE Put a thick cloth or fabric around the radiator cap before refilling the coolant in order to prevent the c ...
