Hyundai Creta: Air bag-supplemental restraint system(SRS) / Side impact air bag

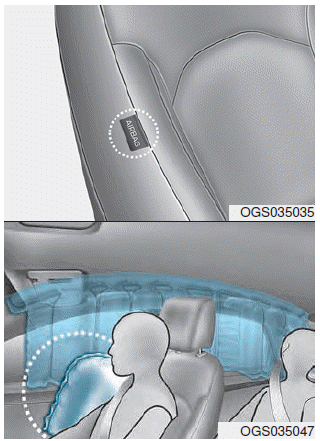

The actual air bags in the vehicle may differ
from the illustration.
Your vehicle is equipped with a side
impact air bag in each front seat.
The purpose of the air bag is to provide
the vehicle's driver and/or the
front passenger with additional protection
than that offered by the seat
belt alone.
The side impact air bags are
designed to deploy only during certain
side-impact collisions, depending
on the crash severity, angle,
speed and point of impact. The side
impact air bags are not designed to
deploy in all side impact situations.
WARNING
Do not allow the passengers to
lean their heads or bodies onto
doors, put their arms on the doors,
stretch their arms out of the window,
or place objects between the
doors and passengers when they
are seated on seats equipped with
side and/or curtain air bags.
WARNING
- The side impact air bag is supplemental
to the driver's and the
passenger's seat belt systems
and is not a substitute for them.
Therefore your seat belts must
be worn at all times while the
vehicle is in motion. The air bags
deploy only in certain side
impact conditions severe
enough to cause significant
injury to the vehicle occupants.
- For best protection from the side
impact air bag system and to
avoid being injured by the
deploying side impact air bag,
both front seat occupants should
sit in an upright position with the
seat belt properly fastened. The
driver's hands should be placed
on the steering wheel at the 9:00
and 3:00 positions. The passenger's
arms and hands should be
placed on their laps.
- Do not use any accessory seat
covers.
- Use of seat covers could reduce
or prevent the effectiveness of
the system.
- Do not install any accessories
on the side or near the side
impact air bag.
- Do not place any objects over
the air bag or between the air
bag and yourself.
- Do not place any objects (an
umbrella, bag, etc.) between the
front door and the front seat. Such
objects may become dangerous
projectiles and cause injury if the
supplemental side impact air bag
inflates.
- To prevent unexpected deployment
of the side impact air bag
that may result in personal injury,
avoid impact to the side impact
sensor when the ignition switch
is on.
- If the seat or seat cover is damaged,
we recommend that the
system be serviced by an
authorized HYUNDAI dealer.
Inform the dealer that your vehicle
is equipped with side impact
air bags.
