Hyundai Creta: General Information / Special service tools

Special Service Tools
Tool (Number and Name)
Illustration
Use
09200-3N000
Engine support fixture (Beam)

Removal and installation of the transmission.
Use this beam (SST No. : 09200-3N000) with the supporter (SST No. : 09200-2S000).
※Permit operating with 09200-38001.
※Refer to the engine support fixture assembly drawing below.
A: 09200-2S000
B: 09200-2S100
C: 09200-2S200
Engine support fixture (Supporter)

Removal and installation of the transmission.
Use this beam (SST No. : 09200-38001/3N000) with the supporter (SST No. : 09200-2S000).
※Refer to the engine support fixture assembly drawing below.
09431-26100
Oil seal installer

Installation of transaxle case oil seal.
[Using with handle (SST No.:09231-H1100)]
09231-H1100
Bar

Installation of transaxle case oil seal.
[Using with oil seal installer (SST No.:09452-26100)]

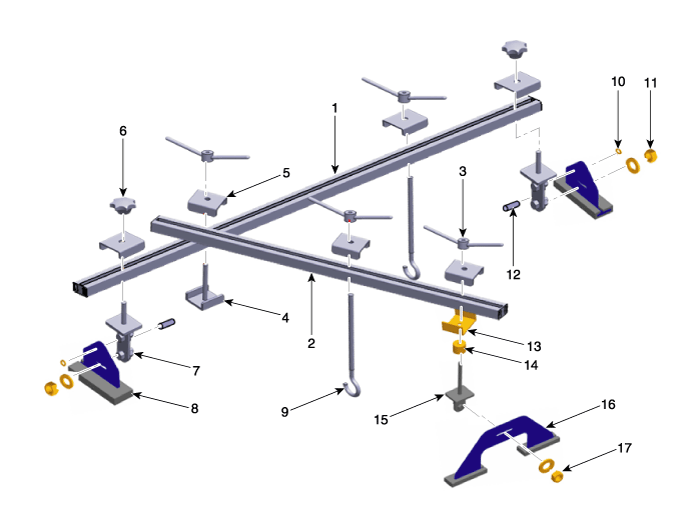

※ Engine support fixture special tool assembly drawing

1. 09200-3N000(Main bar)
2. 09200-3N000(Sub bar)
3. 09200-3N000(Handle)
4. 09200-3N000(Stopper)
5. 09200-3N000(Stopper)
6. 09200-3N000(Knobe)
7. 09200-3N000(Adapter)
8. 09200-2S000(Supporter)
9. 09200-3N000(Hanger)
10. 09200-3N000(Clip)
11. 09200-3N000(Nut)
12. 09200-3N000(Pin)
13. 09200-2S000(Stopper)
14. 09200-2S000(Spacer)
15. 09200-2S000(Adapter)
16. 09200-2S000(Supporte)
17. 09200-2S000(Nut)

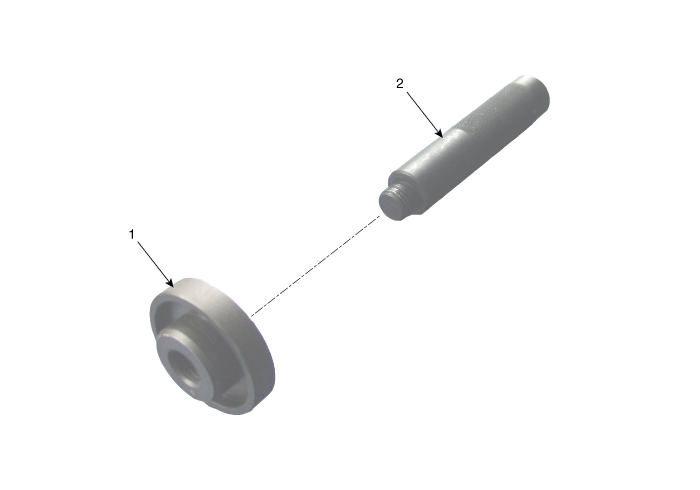

Oil seal installer special tool assembly drawing

1. 09431-26100 (Oil seal installer)
2. 09231-H1100 (Bar)

Specifications
Specifications Manual transaxle type M6CF1 Engine type Gasoline 1.6 MPI Gear ratio 1st 3.76 ...
