Hyundai Creta: Hydraulic System / Fluid

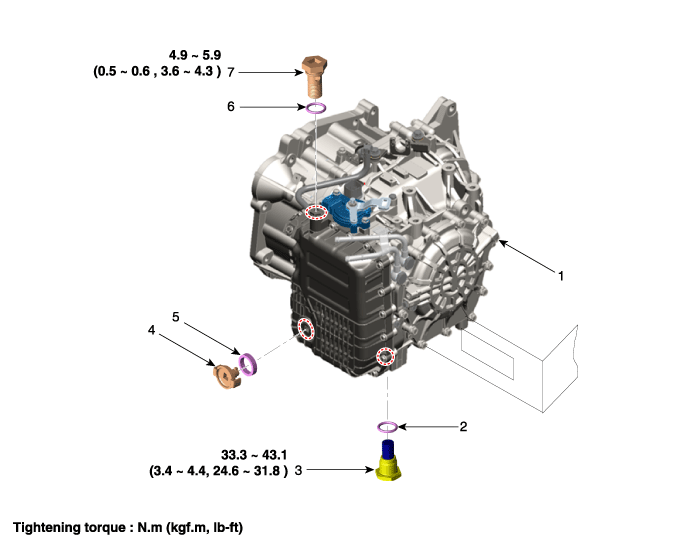

Components and components location
1. Automatic transaxle
2. Drain plug gasket
3. Drain plug
4. ATF level check plug
|
5. ATF level check plug gasket
6. ATF injection plug O-Ring
7. ATF injection plug (Eyebolt)
|
Repair procedures
| Service Adjustment Procedure |
| • |
The ATF level check is not normally required during scheduled
services. If an ATF leak is found, perform the ATF level check
procedure after repairs are completed.
|
|
| • |
When checking the oil level, be careful not to allow dust, foreign
materials, etc. to enter the fill hole.
|
|
| 1. |
Remove the eyebolt (A).
|
| 2. |
Add ATF SP-IV 700cc to the ATF injection hole.
|
| 3. |
Start the engine.
(Don’t step on brake and accelerator simultaneously.)
|
| 4. |
Confirm that the temperature of the automatic transaxle oil temperature
sensor is 50 ~ 60°C (122 ~ 140°F) with the GDS.
|
| 5. |
Shift the select lever slowly from "P" to "D", then "D" to "P" and repeat
one more at idle.
| •
|
Keep each shift position for more than 2 seconds.
|
|
|
| 6. |
Lift the vehicle, then remove the under cover.
(Refer to Engine Mechanical System - "Engine room under cover")
|
| 7. |
Remove the ATF level check plug (A) from the valve body cover.
| •
|
At this time, the vehicle must be on level ground.
|
|
|
| 8. |
If the ATF flows out of the overflow plug in thin steady stream, the
level is normal.
Then finish the procedure and tighten the ATF level check plug.
|
Oil level check method (for excess or shortage)
| •
|
Excess: The quantity of drained oil exceed 900cc for
tow minutes. {50 ~ 60°C (122 ~ 140°F)}
|
| •
|
Shortage: No ATF flows out of the overflow plug.
|
|
| •
|
Replace the gasket before reinstalling the ATF level
check plug.
|
| •
|
Turn the oil level check plug clockwise until it is
set.
|
| •
|
If there is no damage at the automatic transaxle and
the ATF cooler, the ATF cooler hose, transaxle case,
valve body tightening state are normal, ATF must drip
out after performing 1 to 6 procedures above. if the
oil doesn’t drip out, inspect the automatic transaxle
assembly.
|
|
|
| 9. |
Install the under cover.
(Refer to Engine Mechanical System - "Engine room under cover")
|
| 10. |
Put down the vehicle with the lift and then tighten the eyebolt.
|
Eyebolt tightening torque:
4.9 ~ 5.9 N.m (0.5 ~ 0.6 kgf.m, 3.6 ~ 4.3 lb-ft)
|
| •
|
Replace the gasket (A) before reinstalling the eyebolt.
|
|
|
|
ATF of 6 speed automatic transaxle doesn’t be replaced. But, if the
vehicle is severe use or business use, replace ATF every 60,000 miles
for severe usage.
Severe usage is defined as
| • |
Driving on rough road (Bumpy, Gravel, Snowy, Unpaved road, etc).
|
| • |
Driving on mountain road, ascent/descent.
|
| • |
Repetition of short distance driving.
|
| • |
More than 50% operation in heavy city traffic in hot weather
above 32°C (89.6°F).
|
| • |
Police car, taxi, commercial vehicle or towing trailer, etc.
|
|
| 1. |
Lift the vehicle, then remove the under cover.
(Refer to Engine Mechanical System - "Engine room under cover")
|
| 2. |
Remove the drain plug (A) and reinstall the drain plug after draining
ATF totally.
| •
|
Replace the gasket before reinstalling the drain plug.
|
|
|
Drain plug tightening torque:
33.3 ~ 43.1 N.m (3.4 ~ 4.4 kgf.m, 24.6 ~ 31.8 lb-ft)
|
|
| 3. |
Put down the vehicle with the lift and then remove the eyebolt (A).
|
| 4. |
Fill the oil of about 5.0 liters to the injection hole.
|
| 5. |
Check the ATF level.
(Refer to Hydraulic System - "Fluid")
|
| 6. |
Then finish check the ATF level procedure and install the under cover.
(Refer to Engine Mechanical System - "Engine room under cover")
|
| 7. |
Put down the vehicle with the lift and then tighten the eyebolt.
|
Eyebolt tightening torque :
4.9 ~ 5.9 N.m (0.5 ~ 0.6 kgf.m, 3.6 ~ 4.3 lb-ft)
|
| •
|
Replace the gasket (A) before reinstalling the eyebolt.
|
|
|
