Hyundai Creta: Hydraulic System / Oil Pump

Description and operation

Description
The oil pump is built-in as a single unit with the 26 Brake chamber.
Rotation of the pump builds the hydraulic pressure needed for the lubrication of the various parts of the transaxle and operation of the clutch and brakes.
The oil also circulates through the torque converter and the cooler.

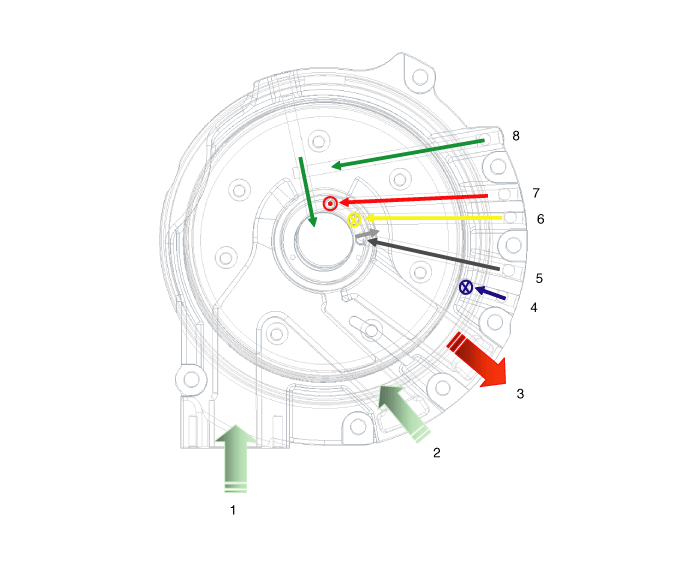

Operation flow of the mechanical oil pump

1. Inhale (Oil filter)
2. Inhale (Valve body)
3. Outlet
4. 26/B operation pressure
5. 35R/C operation pressure
6. Lubrication
7. Lock up clutch operation pressure
8. Lock up clutch cancellation



Components and components location

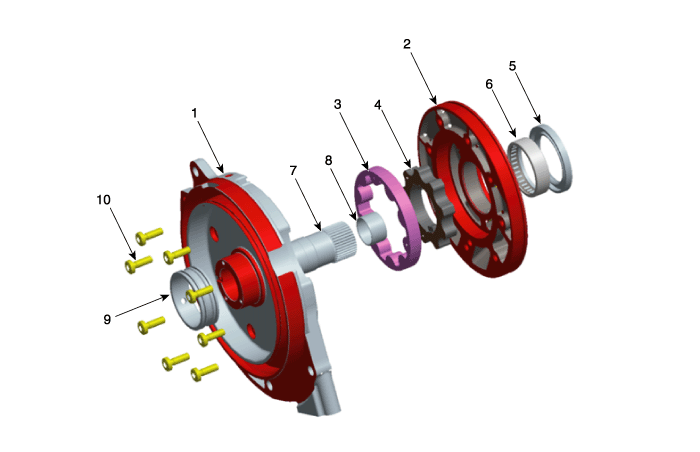

Components

1. Reaction shaft support assembly
2. Oil pump housing
3. Driven gear
4. Drive gear
5. Oil seal

6. Bearing-housing
7. Reaction shaft
8. Bush-Reaction shaft
9. Sleeve
10. Flange bolt

Repair procedures

Repair procedures

Dissembly and reassembly procedures of the oil pump, refer to the overhaul manual.
