Hyundai Creta: Interior Trim / Center Pillar Trim

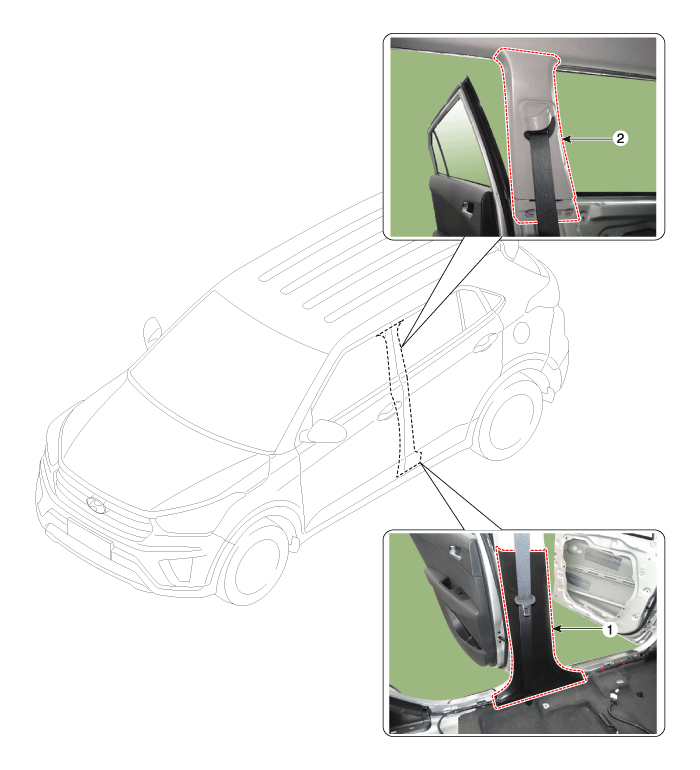

Components and components location
1. Center pillar lower trim
|
2. Center pillar upper trim
|
Repair procedures
[Center pillar lower trim]
• |
Put on gloves to protect your hands.
|
|
• |
When prying with a flat-tip screwdriver or use a prying trim
tool, wrap it with protective tape, and apply protective tape
around the related parts, to prevent damage.
|
• |
Use a plastic panel removal tool to remove interior trim pieces
to protect from marring the surface.
|
• |
Take care not to bend or scratch the trim and panels.
|
|
1. |
Remove the front door scuff trim.
(Refer to Interior Trim - "Door Scuff Trim")
|
2. |
Remove the rear door scuff trim.
(Refer to Interior Trim - "Door Scuff Trim")
|
3. |
Slighty remove the front door body side weatherstrip.
|
4. |
Slighty remove the rear door body side weatherstrip.
|
5. |
Using a screwdriver or remover, remove the center pillar lower trim
(A).
|
6. |
To install, reverse the removal procedure.
•
|
Replace any damaged clips.
|
|
|
[Center pillar upper trim]
• |
Put on gloves to protect your hands.
|
|
• |
When prying with a flat-tip screwdriver or use a prying trim
tool, wrap it with protective tape, and apply protective tape
around the related parts, to prevent damage.
|
• |
Use a plastic panel removal tool to remove interior trim pieces
to protect from marring the surface.
|
• |
Take care not to bend or scratch the trim and panels.
|
|
1. |
Remove the center pillar lower trim.
(Refer to Interior Trim - "Center Pillar Trim")
|
2. |
After loosening the mounting bolt, then remove the front seat belt lower
anchor (A).
Tightening torque :
39.2 ~ 53.9 N.m (4.0 ~ 5.5 kgf.m, 28.8 ~ 39.8 lb-ft)
|
|
3. |
Using a screwdriver or remover, remove the center pillar lower trim
(A).
|
4. |
To install, reverse the removal procedure.
•
|
Replace any damaged clips.
|
|
•
|
Install the center pillar upper trim (B) after inserting
the upper hook (A).
|
|
|
